Baja Designs 22-25 Toyota Tundra Squadron 2.0 Pro Vent Kit

The headlight vents on the third-gen Tundra make a clean place for more light. The Baja Designs Squadron 2.0 Pro Vent Kit (44-0078) mounts four Squadron 2.0 Pro lights there, blending with the OEM body lines. Each light makes 5,921 lumens at 65W, which Baja says is 21% more than the previous Squadron.

Key Features

• 5,921 lumens at 65W / 4.7A per light, 12-32V
• Two driving/combo and two wide cornering lights
• Baja Amber wide cornering lens kits included
• User-selectable backlight with 9 colors
• Clip-in reflectors improve uService lens swaps; new gasket for better sealing
• 4-pin Deutsch connector; more vertical bracket adjustment
• 30-day satisfaction guarantee and limited lifetime warranty

Fitment

2022-2026 Toyota Tundra.

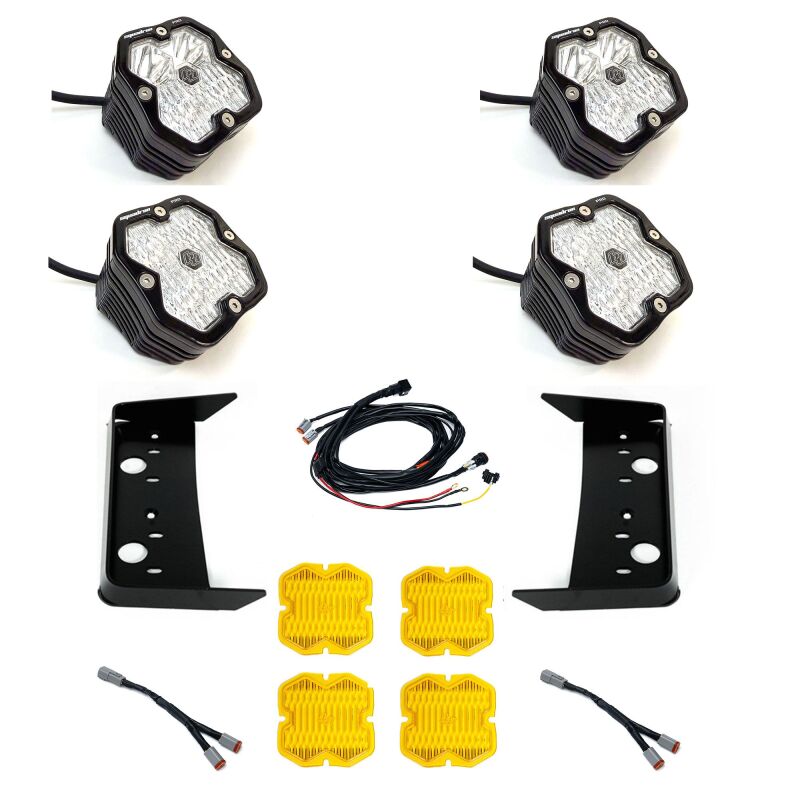

What's in the Box

• (2) Squadron 2.0 Pro angled mount, driving/combo clear
• (2) Squadron 2.0 Pro angled mount, wide cornering clear
• (2) fascia brackets
• (2) mounting brackets
• (1) wiring harness (64-0055)
• (2) splitter harnesses (66-0004)
• (2) Squadron 2.0 90° lens kits, wide cornering Baja Amber
• (1) fuse tap kit (63-9209)
• All mounting hardware

Install Notes

Baja's install sheet lists 10mm, 12mm and 7/16in sockets, a 3/4in drill bit, snips, scissors, Phillips and flat screwdrivers, a trim tool and a 5/32 Allen key. You pull the front of the fender flare, disconnect the grille connectors (TRD and non-TRD differ), and bolt in the vent brackets with a 7/16in socket.

FAQ

Can I run amber?
Yes. Amber wide cornering lens kits are in the box.

Is this plug and play?
Baja describes it as plug-and-play with the included harnesses.
