Baja Designs 2024+ Toyota Tacoma S8 Series 10in Grille Conversion Light Kit

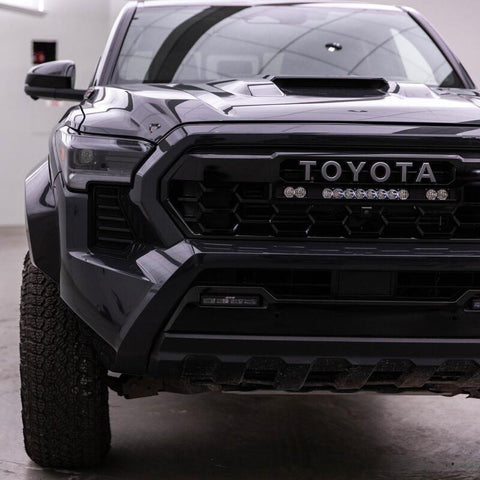

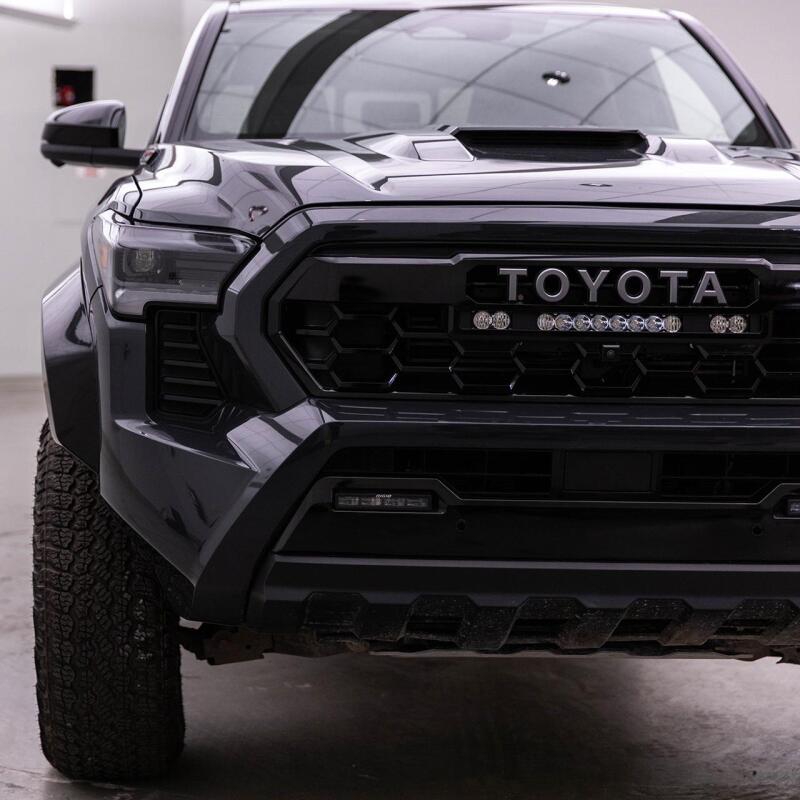

Did the TRD Pro grille swap on your Tacoma? The Baja Designs Grille Conversion Light Kit (448262) adds a 10-inch S8 light bar and two S2 Pro pods to that grille on the 2024-2026 Toyota Tacoma. Note: this kit does not include the grille.

Key Features

• S8 10in light bar, driving/combo: 6,324 lumens at 57.9W / 4.2A, lights zones 3-4
• Two S2 Pro pods, wide cornering: 2,245 lumens each at 23.4W / 1.7A, light zones 1-2
• Dual independent harnesses so the bar and pods switch separately
• Amber backlight works as a marker light when the main lights are off
• Includes a bracket that re-mounts the front grille camera
• uService lets you swap lenses without voiding the warranty
• 30-day satisfaction guarantee and limited lifetime warranty

Fitment

2024-2026 Toyota Tacoma that has been converted to the TRD Pro grille, per Baja Designs. Some trimming is required.

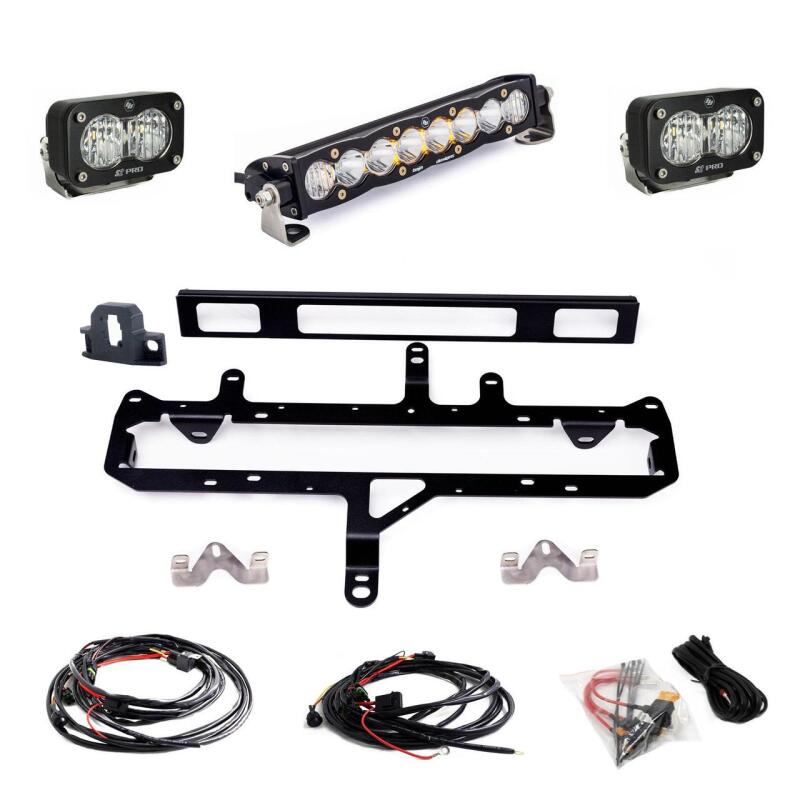

What's in the Box

• (1) S8 10in light bar, driving/combo
• (2) S2 Pro, wide cornering
• (1) camera adapter
• (4) mounting brackets
• (2) wiring harnesses
• (1) S8 backlit add-on harness
• All necessary mounting hardware

Install Notes

Baja's install sheet notes trimming on the inside of the grille. The S8 mounts with M6 hex bolts using a 7/16in socket, the S2s mount with a 9/16in wrench and socket, then the bezel slides over the lights. Level the lights before tightening.

FAQ

Does it come with the grille?
No. It is for trucks that already have the TRD Pro grille conversion.

Can I run the bar and pods separately?
Yes. Each has its own harness.
