Baja Designs 2022+ Toyota Tundra TRD Pro 20in S8 Replacement Kit Amber

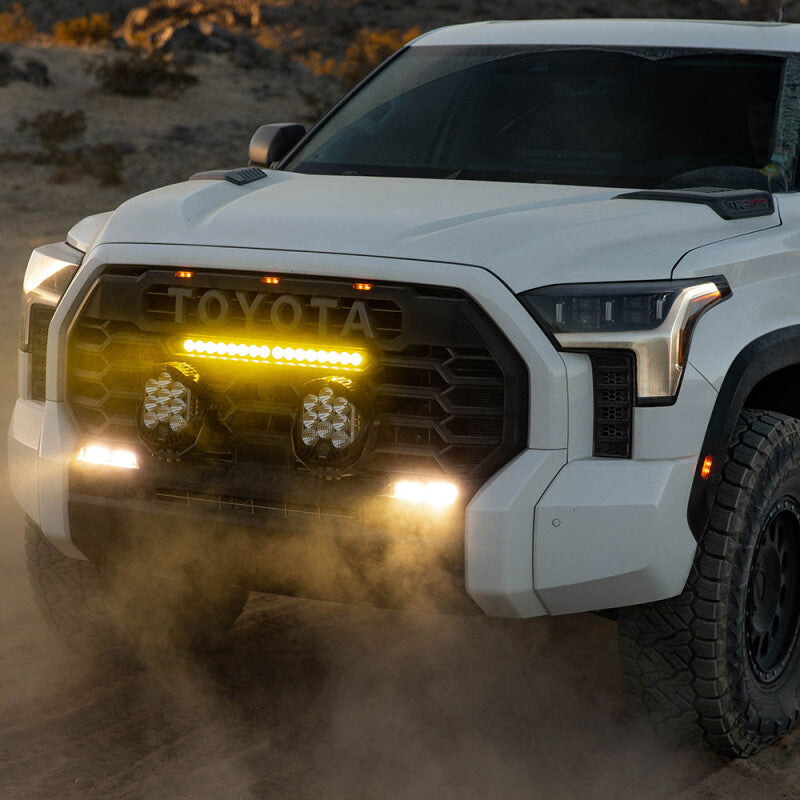

Add or replace the light bar in your stock TRD Pro grille without losing the low-profile look. The Baja Designs 20-inch S8 Replacement Kit (448124) for the 2022-2026 Toyota Tundra TRD Pro uses a 20-inch S8 with a Baja Amber driving/combo lens, putting out 12,700 raw lumens of forward light across lighting zones 1-4.

Key Features

• 12,700 raw lumens, driving/combo pattern

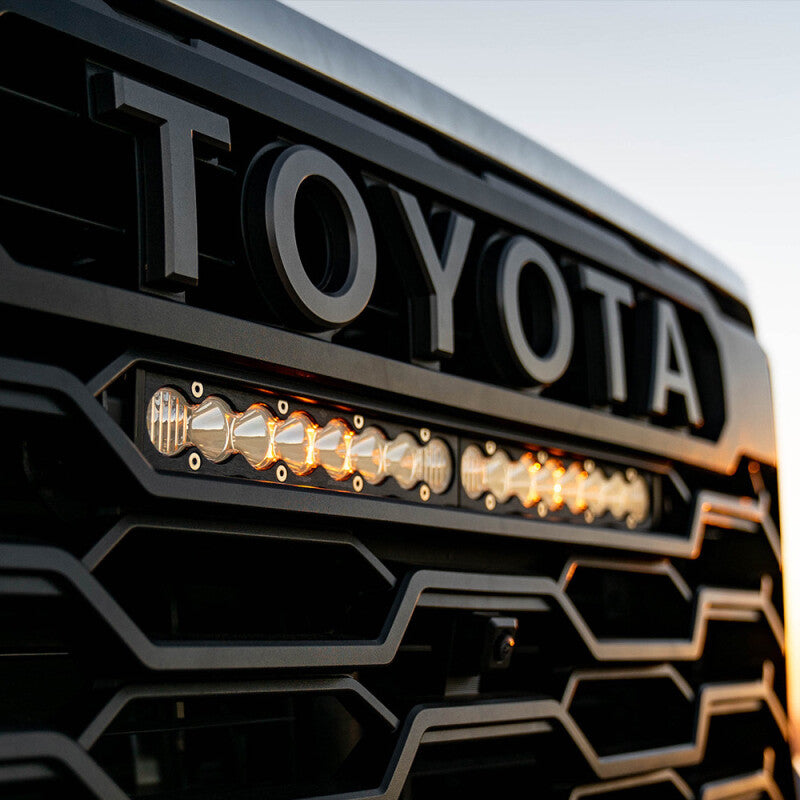

• Keeps the factory low-profile TRD Pro grille appearance
• Includes the S8 backlit harness
• uService replaceable lenses and optics
• ClearView optics put the light where you need it
• MoistureBlock: waterproof, rainproof and submersible
• DirectSink direct thermal path technology
• 5000K daylight color for less driver fatigue
• 30-day satisfaction guarantee and limited lifetime warranty

Fitment

2022-2026 Toyota Tundra TRD Pro with the stock TRD Pro grille only. If your truck has the TRD Heritage grille conversion, you need Baja's conversion kit (448078) instead.

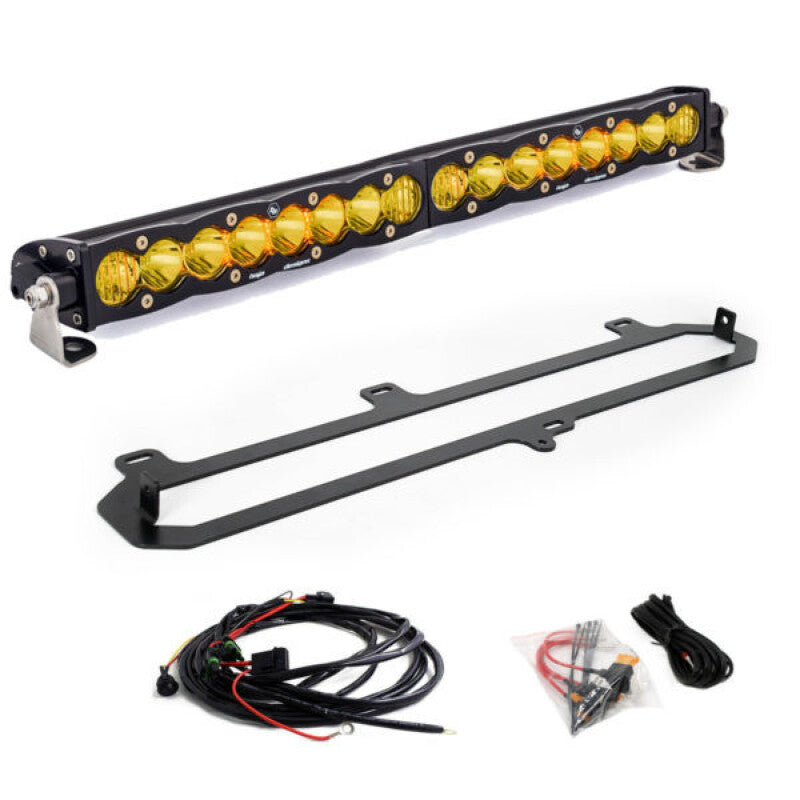

What's in the Box

• (1) S8 20in light bar, driving/combo, Amber
• (1) light bar bracket
• (2) upper grille support brackets
• (1) wiring harness #640115
• (1) S8 backlit harness #640177
• All necessary mounting hardware

Install Notes

This is a grille-out install. Baja's sheet lists 10mm and 7/16in sockets, a 3/4in drill bit, a T25 Torx, a trim tool, a Phillips screwdriver and a 7/16in wrench. You loosen the front of both fender flares, remove the grille, mount the S8 on the vehicle-specific bracket, then connect the harness to the battery and the common ground bolt. Tie wires away from hot or moving parts and re-torque fasteners after 100 miles.

FAQ

Will it fit a Heritage grille conversion?
No. Baja says this kit fits TRD Pro models only; the Heritage grille conversion needs the separate conversion kit.

Does it come with wiring?
Yes, the main harness and the S8 backlit harness are included.
