Baja Designs 2022 Toyota Tundra TRD 20in S8 OEM Replacement Kit - Amber

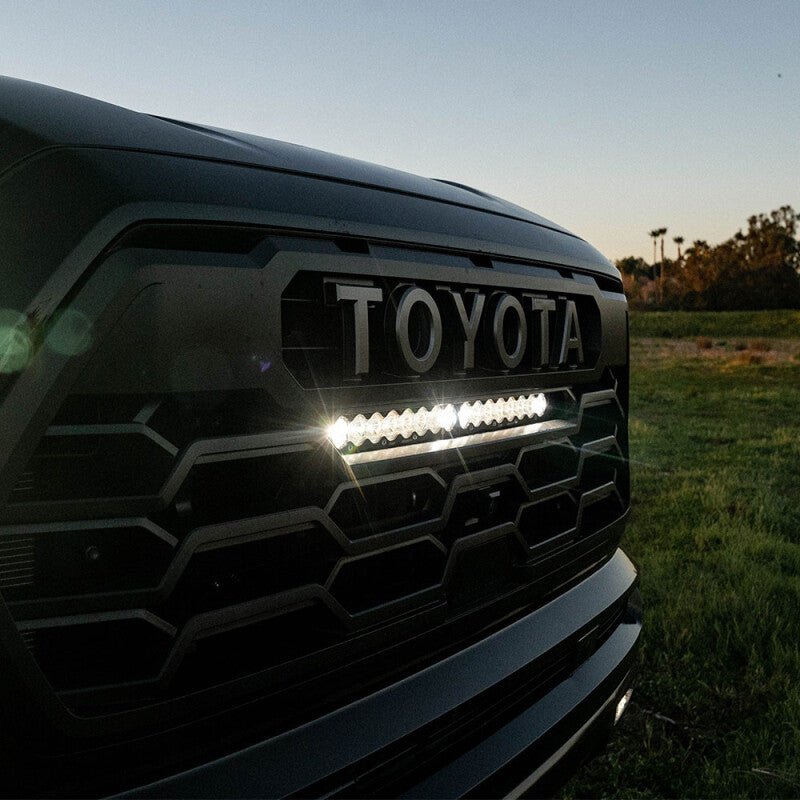

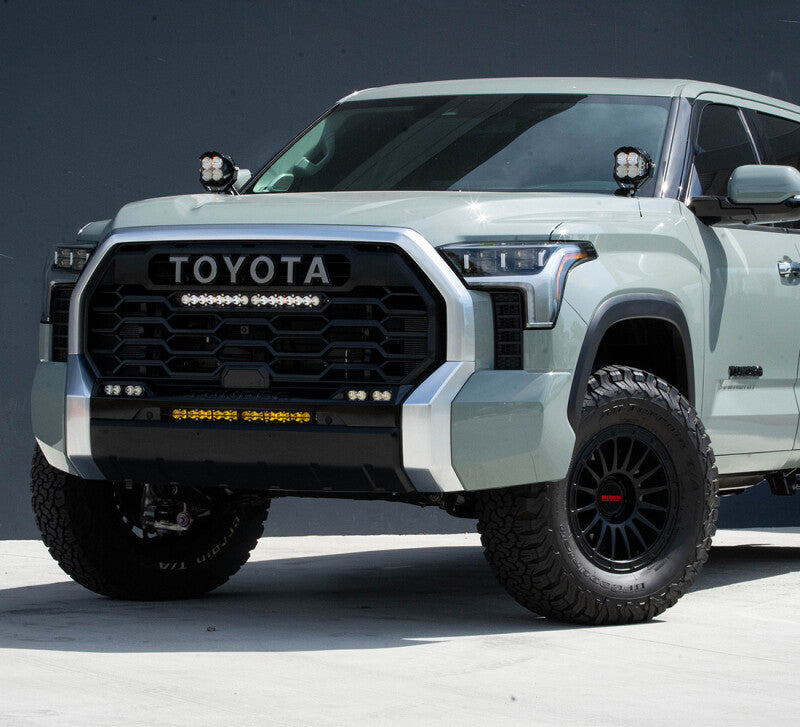

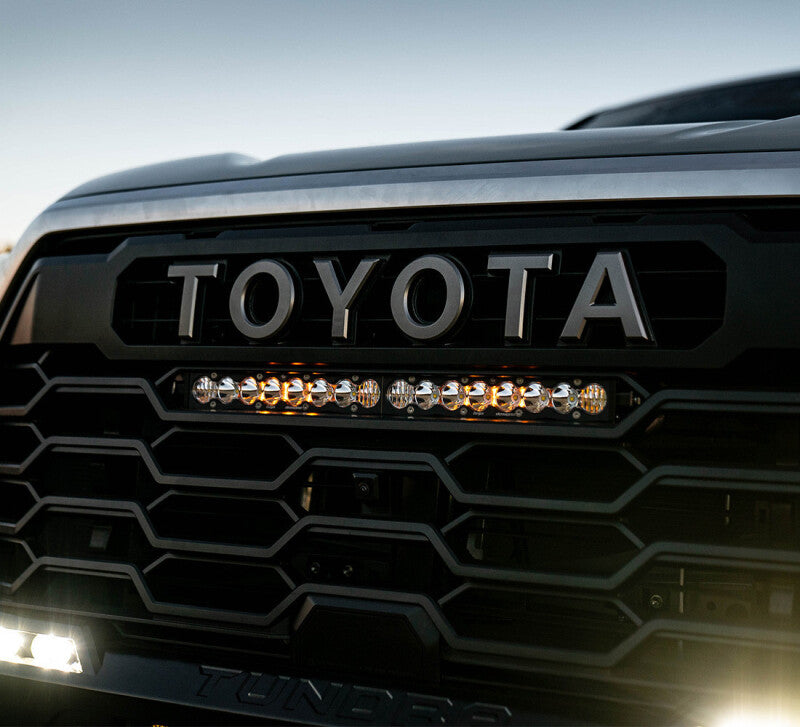

Done the TRD grille conversion on your Tundra? The Baja Designs 20" S8 Grille Light Kit in Baja Amber (448079) adds a low-profile light bar behind it. It makes 12,700 raw lumens in a driving/combo pattern that covers lighting zones 1-4.

Key Features

• 20" S8 light bar with driving/combo pattern, Baja Amber
• 12,700 raw lumens
• Low-profile look that suits the TRD grille
• uService replaceable lenses and optics
• ClearView optics put the light where you need it
• MoistureBlock: waterproof, rainproof and submersible
• 5000K daylight color
• 30-day satisfaction guarantee and limited lifetime warranty

Fitment

2022-2026 Toyota Tundra with the TRD Heritage grille conversion and shutter assembly, plus the 2023+ Sequoia TRD. Does not fit Tundra TRD Pro models. Grille not included.

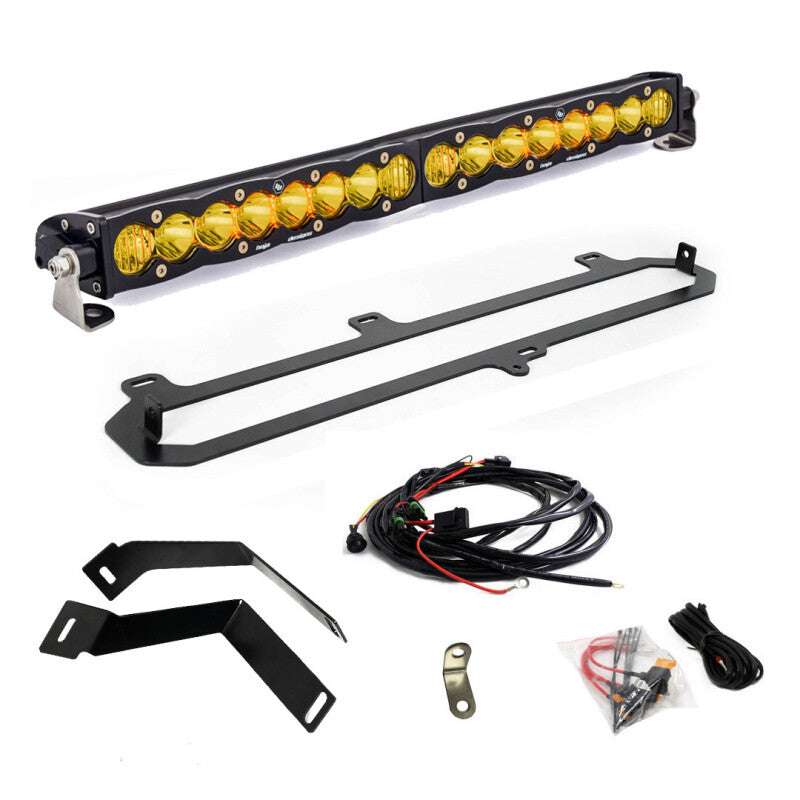

What's in the Box

• (1) S8 20" light bar, driving/combo, Baja Amber
• (1) light bar bracket
• (2) upper grille support brackets
• (1) wiring harness (640115)
• (1) S8 backlit harness
• (1) stainless L bracket
• All mounting hardware

Install Notes

You remove the grille and shutter assembly, mount the bar centered and level or angled 1° down, and wire it to the battery. Baja's sheet includes separate power steps for hybrid models.

FAQ

Will it fit my TRD Pro?
No. Baja says this kit will not work on Tundra TRD Pro models.

Is there a clear version?
Yes. Baja part 448078.
