Baja Designs 2024+ Toyota Tacoma S2 Sport Reverse Kit w/ Toggle Switch

Light up everything behind your new Tacoma. The Baja Designs S2 Sport Reverse Kit with toggle switch (448247) mounts two S2 Sport LEDs under the rear bumper of the 2024-2026 Toyota Tacoma. It is the version to get if you want to run it from the OEM auxiliary switches with the Upfitter harness.

Key Features

• Two S2 Sport lights, wide cornering, clear
• 1,581 raw lumens per light
• Mounts under the rear bumper; also works as a dust light
• uService replaceable lenses and optics
• ClearView optics put the light where you need it
• 30-day satisfaction guarantee and limited lifetime warranty
• Works with the Baja Tacoma Upfitter harness (600101), sold separately

Fitment

2024-2026 Toyota Tacoma.

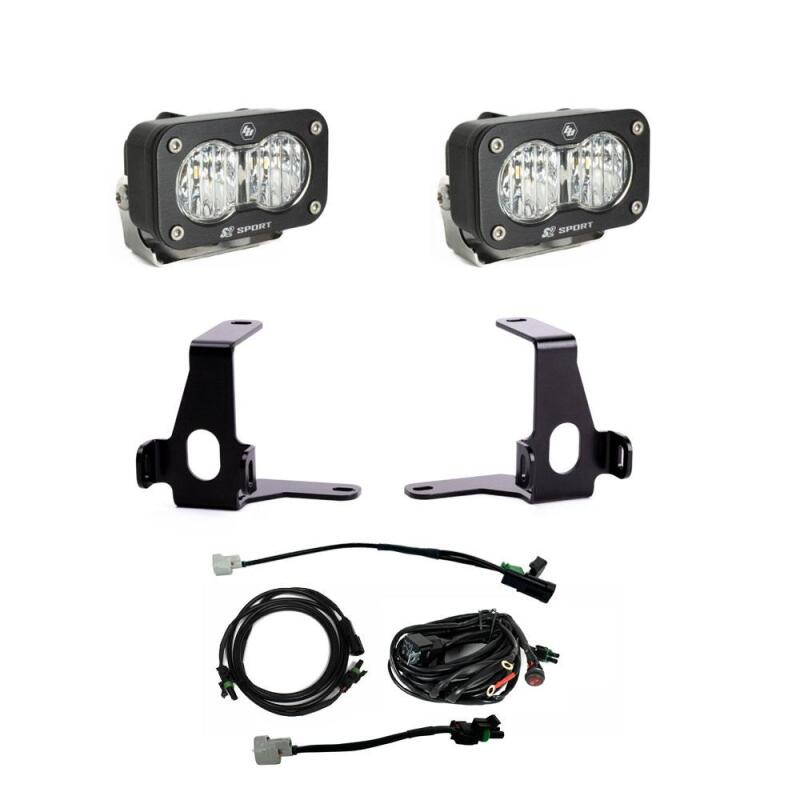

What's in the Box

• (2) S2 Sport, clear / wide cornering
• (2) mounting brackets
• (1) rear circuit input adapter
• (1) rear circuit output adapter
• (1) 55in splitter harness
• (1) toggle switch harness
• All mounting hardware

Install Notes

Baja's install sheet (44-8247/44-8248) lists 10mm and 12mm sockets, a 10mm wrench, a 4mm hex tool, electrical tape and a flat screwdriver. You bolt the S2s to the reverse brackets, then mount the brackets at the frame lift points under the rear bumper. The toggle harness connects through the rear circuit input and output adapters.

FAQ

Can I use the factory aux switches?
Yes, with the Upfitter harness (600101). Only this toggle version works with it.

What is the other version?
448248 plugs into the trailer hitch harness instead.
